MySQL Backup

XLServer provides advanced backup and cloning capabilities for MySQL databases, including both standalone servers and clustered deployments.
By integrating native MySQL tools and ZFS snapshots, XLServer ensures fast backup, reliable recovery, and efficient cloning for development, testing, and data protection.


⚙️ Prerequisites

Before linking and managing a MySQL database server, ensure the following requirements are met:

  • MySQL server is reachable from XLServer (network connectivity must be open).
  • Binlog is enabled in the source MySQL database server (required for incremental backup and recovery).
  • Valid MySQL user credentials with backup privileges and access to catalog system views.
  • SSH access from XLServer to the host (or all nodes in case of a MySQL cluster).
  • MySQL version ≥ 5.7 is supported.
  • Enough free space exists in the datastore to store initial golden image backup and incremental updates.
  • NFS client installed on the MySQL host(s), since backup and clone operations are mounted over NFS.

Note
Ensure the MySQL user has all required privileges for backup. A dedicated SQL script to create this user is provided in the appendix “MySQL User”.
Never link a database to the PUBLIC project, otherwise it will be visible and accessible to all XLServer users.


🔗 Linking a MySQL Database Server

Linking a MySQL database server to XLServer is the first step to bring it under protection.
This process creates the golden image copy (a full backup), which will serve as the baseline for future incremental backups and snapshots.

Step 1 — Open Database Server Detail

Navigate to the MySQL database server detail page.
If the database is not yet linked, you will see the option to link it:

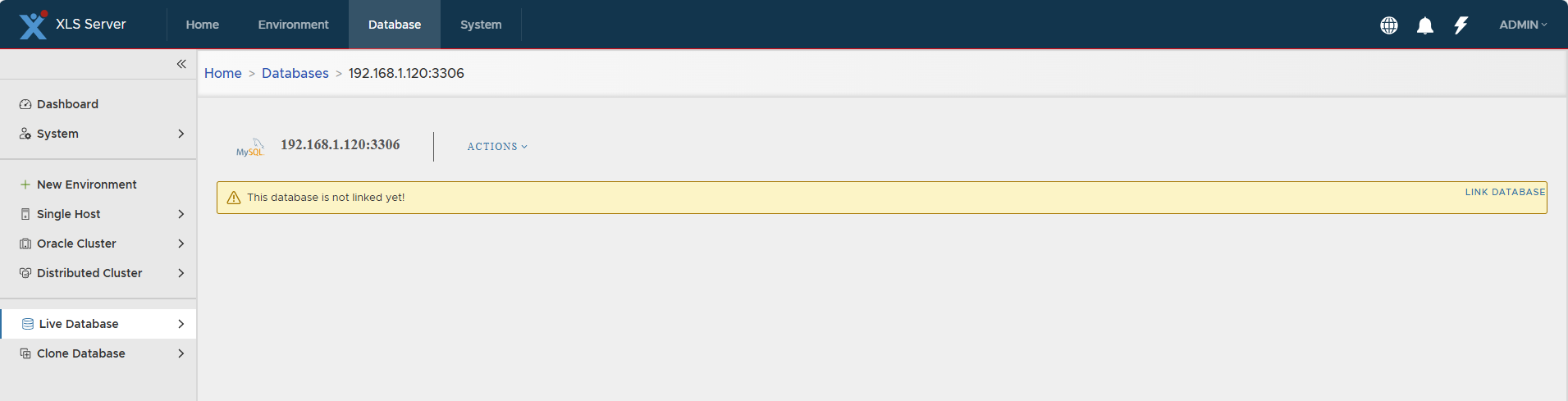

Non-linked MySQL database

Step 2 — Start Linking Wizard

Click “Link Database” (or select Link from the Actions menu).
The Linking Wizard opens.

Step 3 — Validate Credentials

Enter MySQL credentials, then click CHECK CONNECTION.
The wizard only allows moving forward if the database connection succeeds.

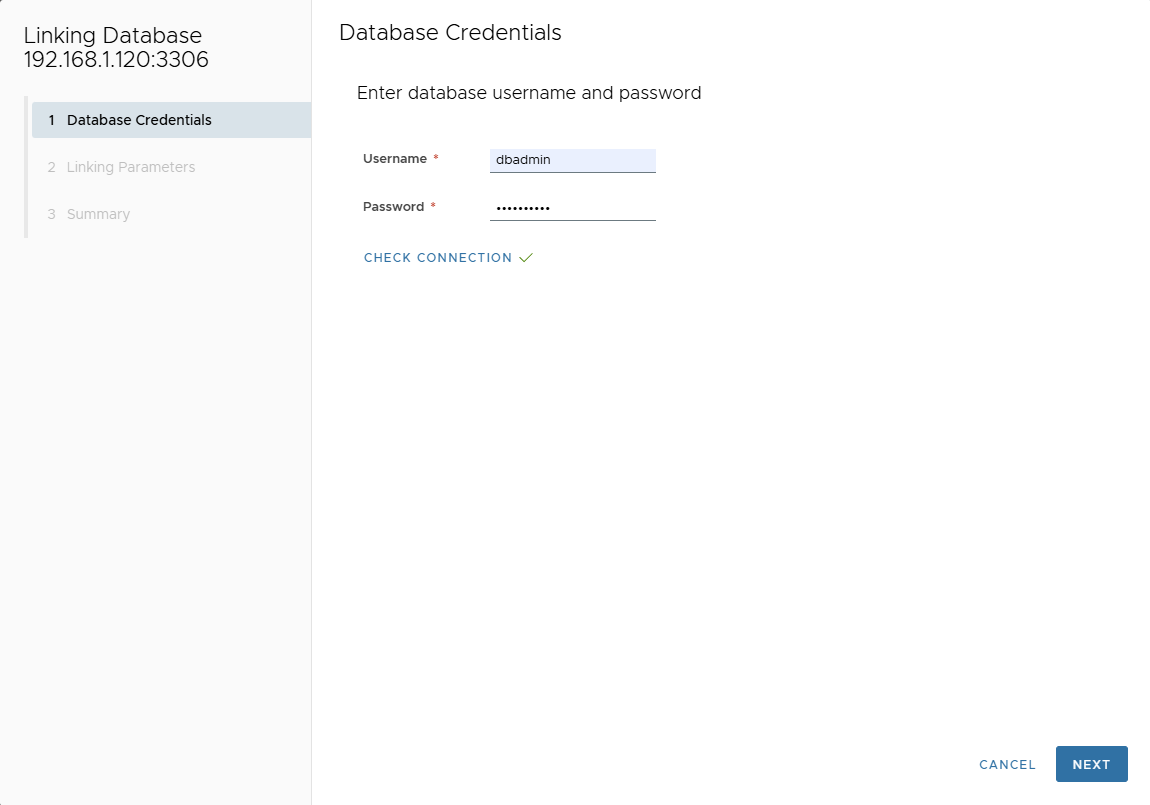

Check connection

Step 4 — Configure Linking Parameters

On the Linking Parameters page, provide detailed options:

  • Mount Base: NFS mount point used for backup. Example: /mnt/link.
  • Parallel Channels: Number of backup threads. Default 1, maximum 32. Higher values speed up backup but increase host load.
  • XtraBackup Path: Optional path if Percona XtraBackup is already installed on the MySQL host. If empty, XLServer uses the bundled xtrabackup.
  • Project: Select the project where this database server belongs. By default, XLServer auto-selects the project of the environment.
  • Default Snapshot Retention: Default retention period for snapshots. Snapshots used by clones are retained automatically.
  • Binlogs Deletion Policy: Choose automatic deletion of binlogs not required for recovery or standby after successful backup.
  • Storage Optimization: Enable compression and/or deduplication to reduce storage usage. May impact backup performance.

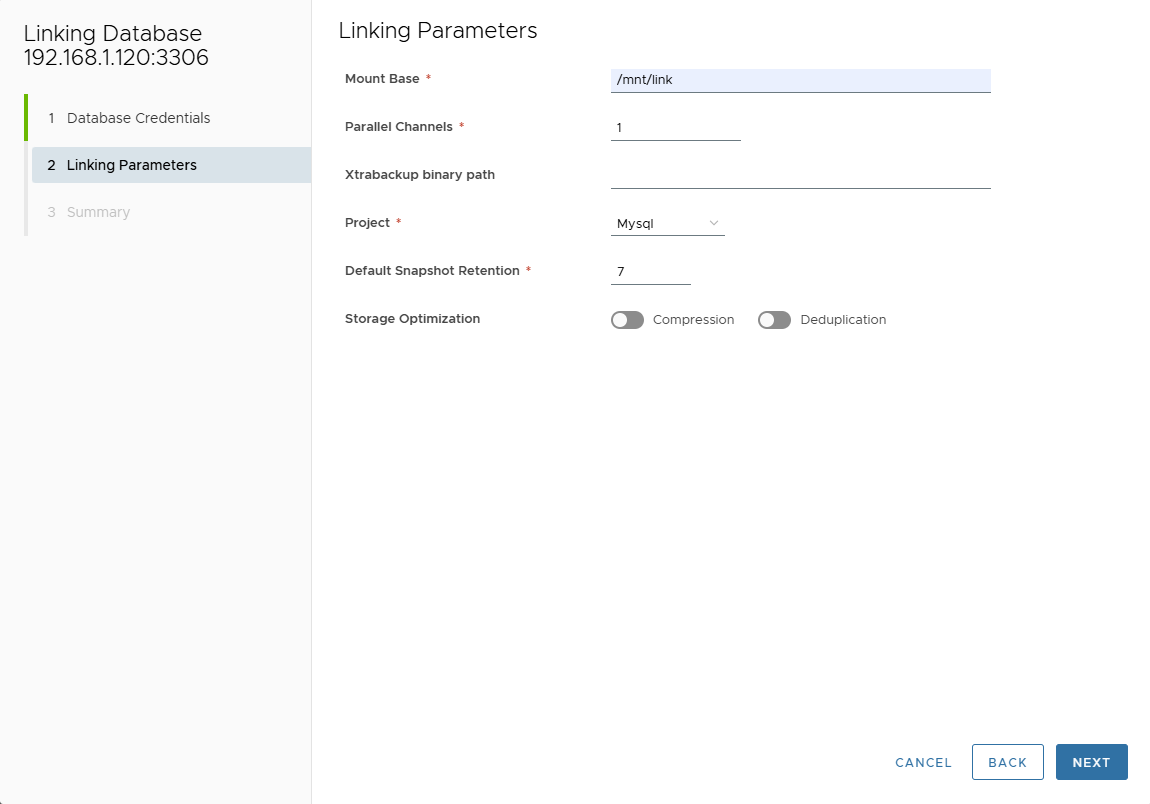

Linking parameters

Step 5 — Review Summary

A summary page displays all selected parameters.

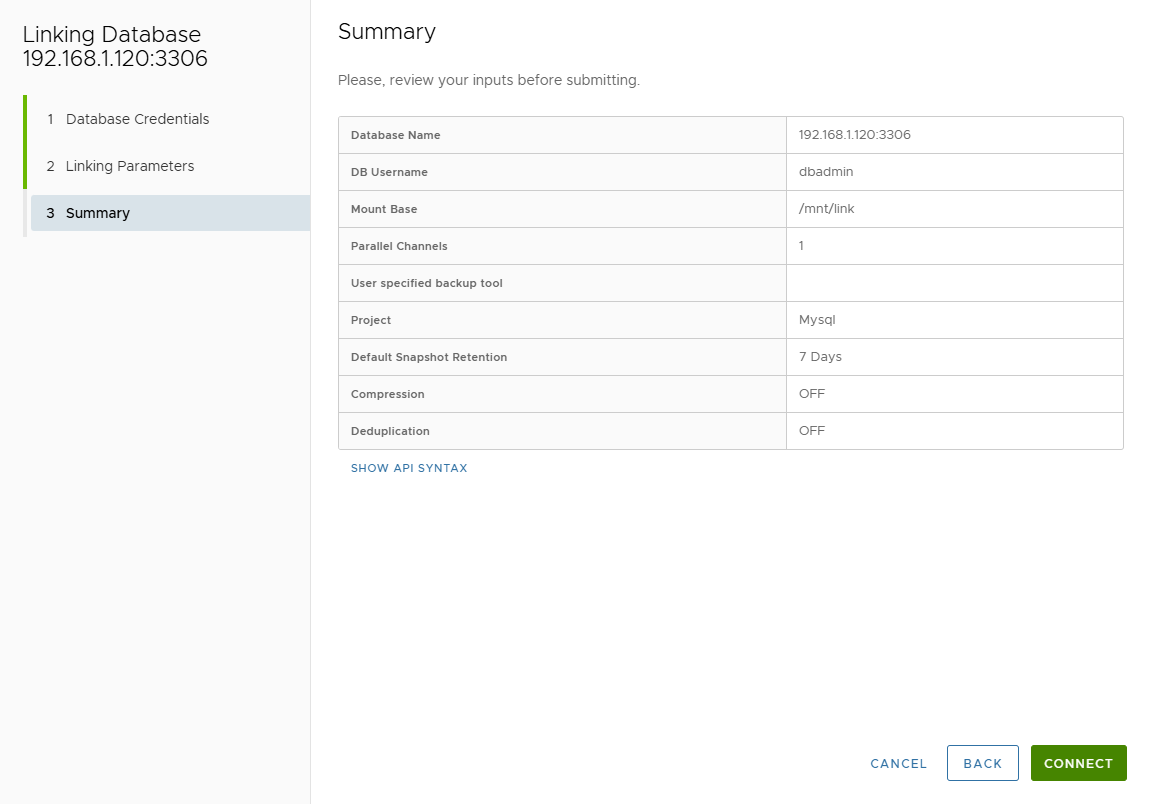

Linking summary

Step 6 — Connect and Validate

Click CONNECT to finalize database linking.
You can track job progress from the Jobs page.

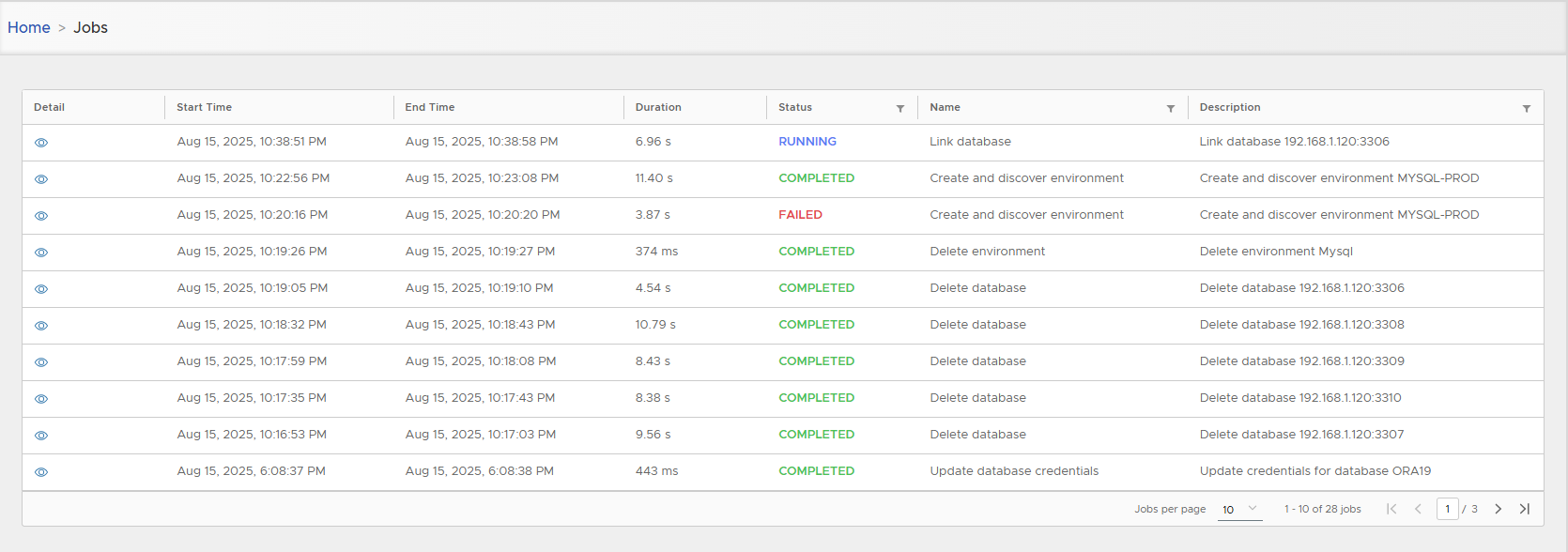

Linking progress

Step 7 — Verify Linked Database

Once linking is complete, return to the database page to confirm details.

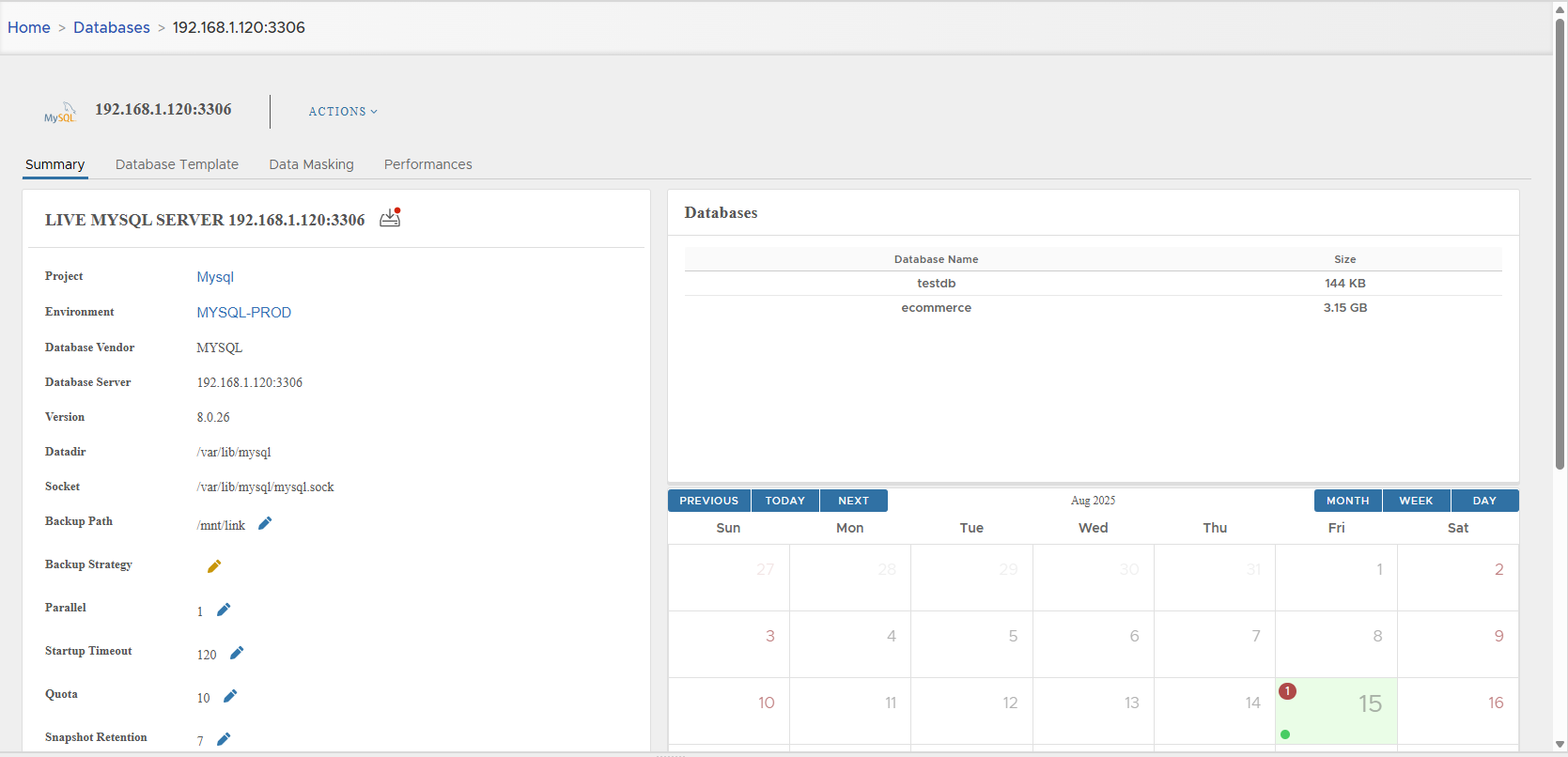

Linked live DB detail


📊 MySQL Live Database Server Detail

Each linked MySQL live database server has a dedicated detail page with four main tabs:

  1. Summary
  2. Database Template
  3. Data Masking
  4. Performance

1. Summary Tab

The summary tab is divided into three areas:

  • Database Parameters — metadata and configuration
  • Database Schemas — schemas and sizes
  • Snapshots Calendar — timeline of backups and snapshots

Database Parameters

A complete list of parameters is shown, such as:

SettingDescriptionDefault ValueModifiable
ProjectProject to which the database is attached
EnvironmentEnvironment where the database resides
VendorAlways MYSQLMYSQL
Database ServerEndpoint of the server (hostname/IP:port)
VersionMySQL server version
DatadirFilesystem path to database data files
SocketSocket path for local connections
Backup PathPath used for backup (corresponds to Mount Base defined during linking)
Backup StrategyStrategy name if one is attachedNone
ParallelNumber of backup threads1
Startup TimeoutTime to wait for clone server startup before failing120s
QuotaMaximum number of clones that can be created. 0 = unlimited10
Snapshot RetentionDefault snapshot retention7 days
Database TypeAlways Live DatabaseLive Database
DB UserMySQL backup user credentials
Generic Post ScriptOptional SQL script executed after clone creation
Connecting ModeCurrently only ONLINE (requires DB connectivity). Offline mode planned for future versions.ONLINE
DiscoveryAUTO = discovered automatically during environment refreshAUTO
Linked OnTimestamp when DB was linked
Last Sync TimeTimestamp of last snapshot creation
Last Refresh TimeTimestamp of last parameter refresh
Created ByUser who added the database to XLServer

Database Schemas

Lists all database schemas detected on the server, with size information.

Snapshots Calendar

Shows a calendar view of all snapshots.

  • Green dots = successful snapshots
  • Red dots = failed snapshots

Click a day to display snapshot list for that date.


2. Database Template Tab

Database templates define reusable parameters (e.g., memory, parallelism) applied automatically to clones.

  • Attach template: Associate a template to live DB
  • Modify template: Switch to a different template
  • Detach template: Remove template association

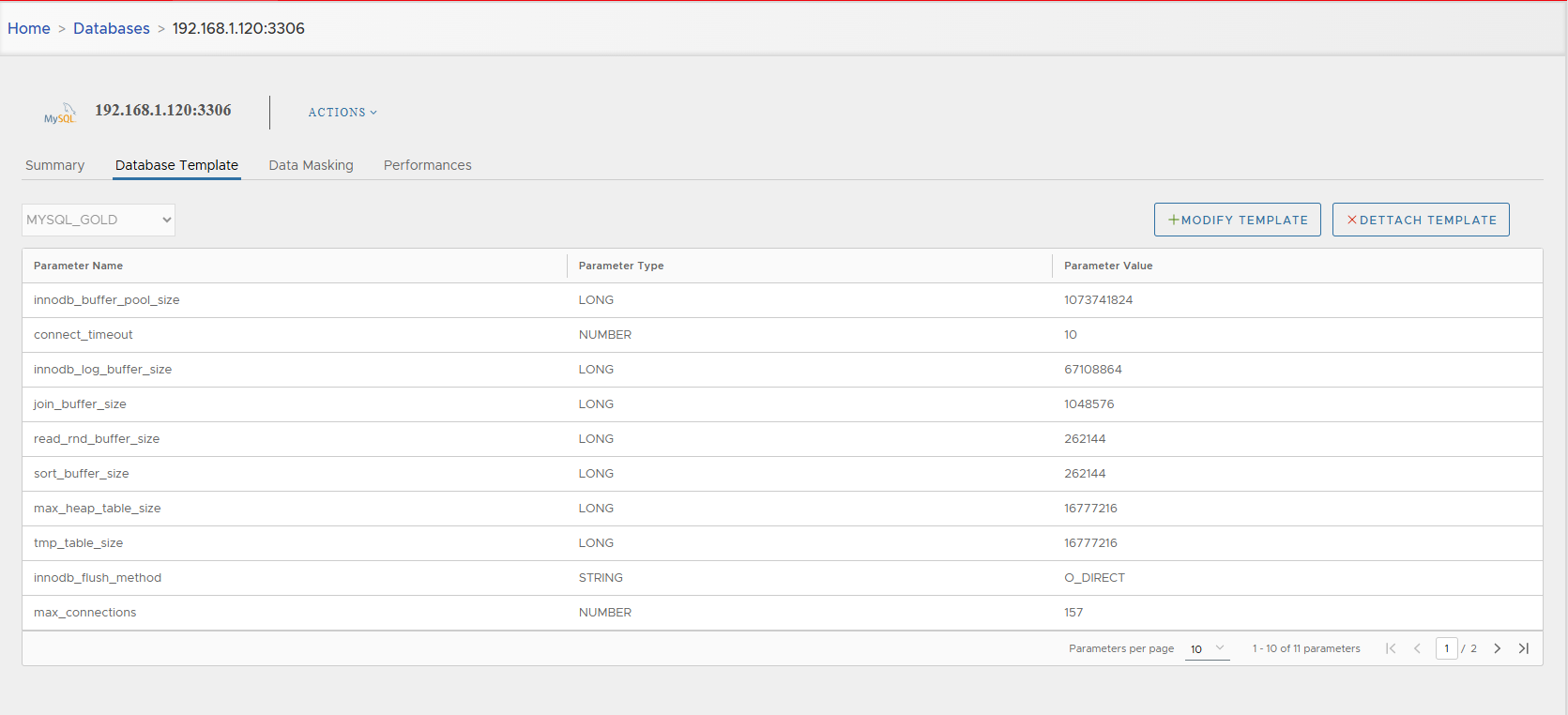

Attach template


3. Data Masking Tab

This tab allows attaching data masking templates to the live database.
These rules are applied automatically to clones to protect sensitive data.

  • Column-level masking — apply templates to specific columns (e.g., credit card numbers).
  • Table-level masking (shuffling) — shuffle entire table rows to keep realistic but anonymized data.

The masking wizard provides:

  1. Database connection validation
  2. Table selection
  3. Column selection and rule assignment
  4. Review and apply

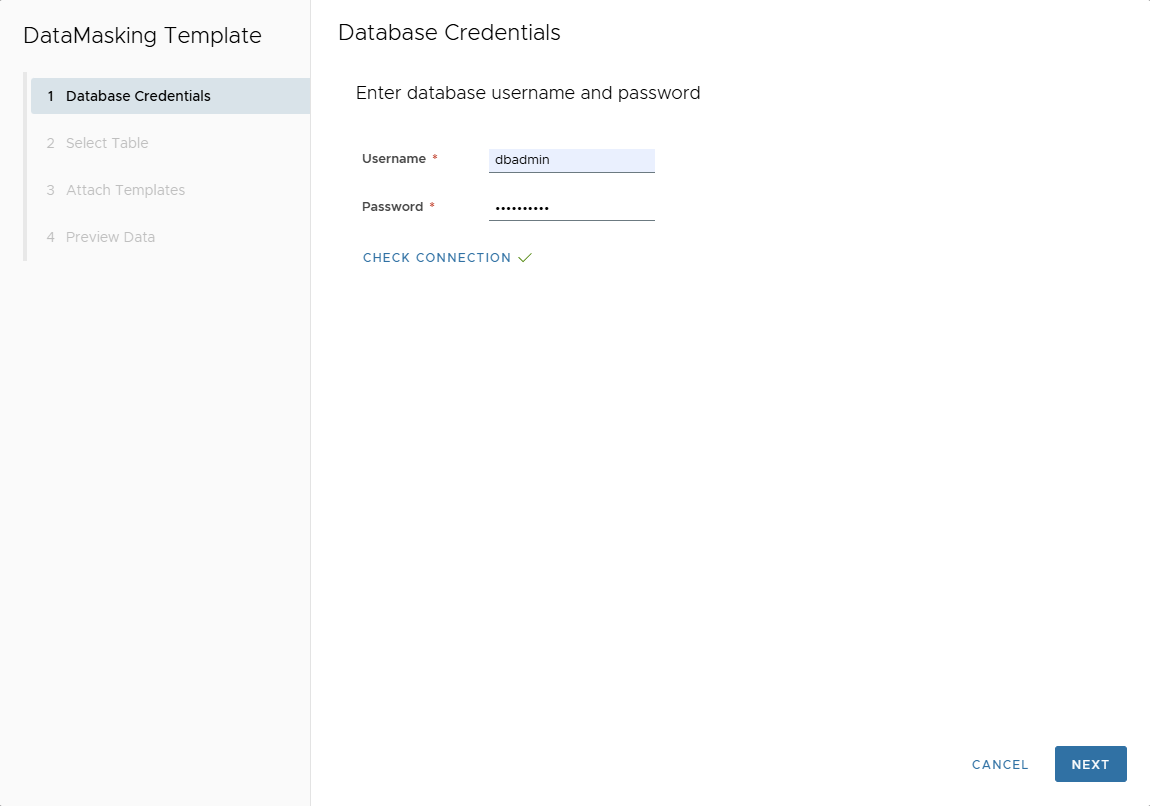

Check DM credentials

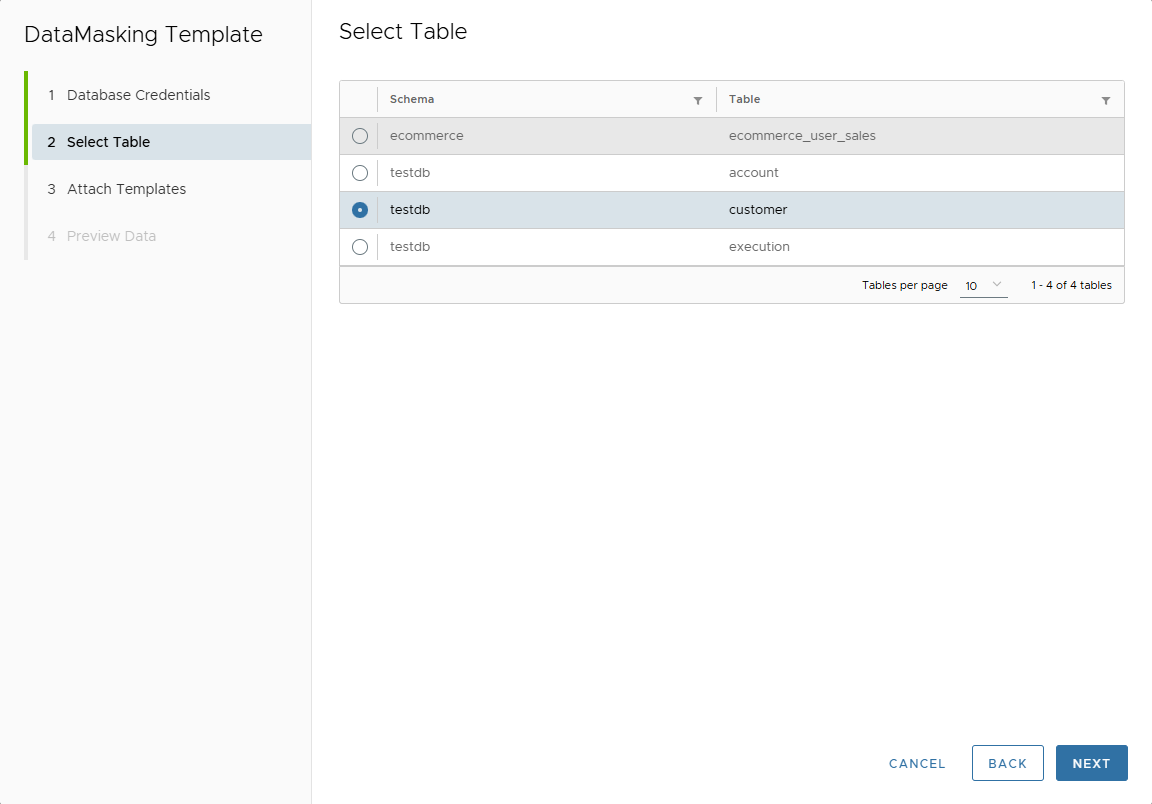

Select table

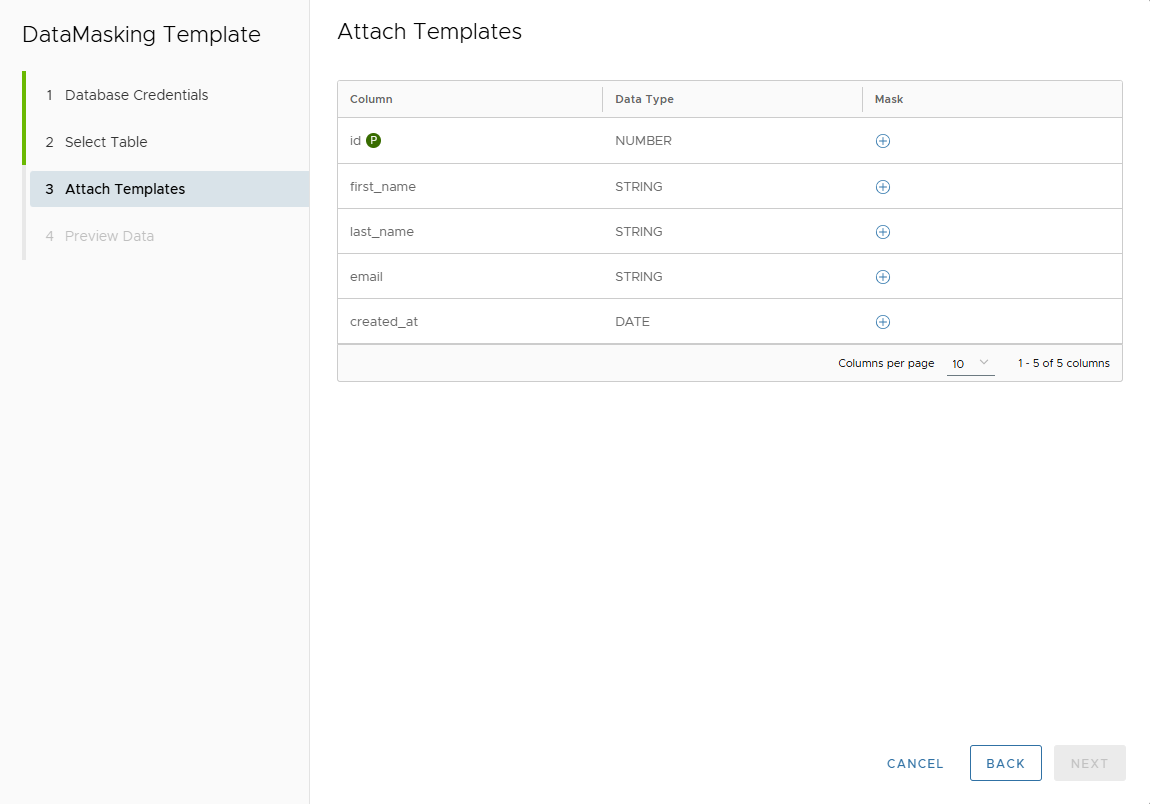

Select column

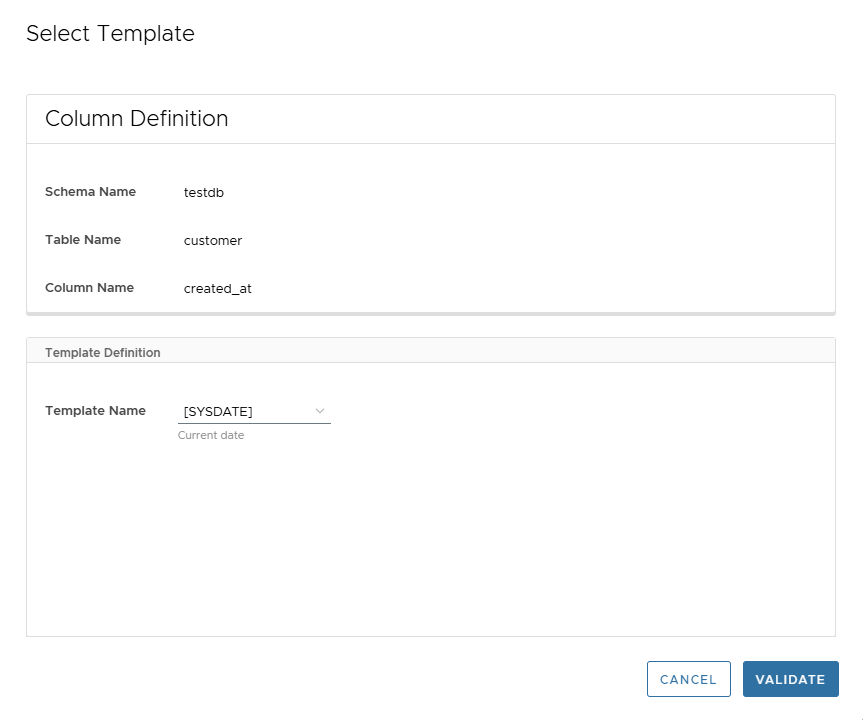

Attach template

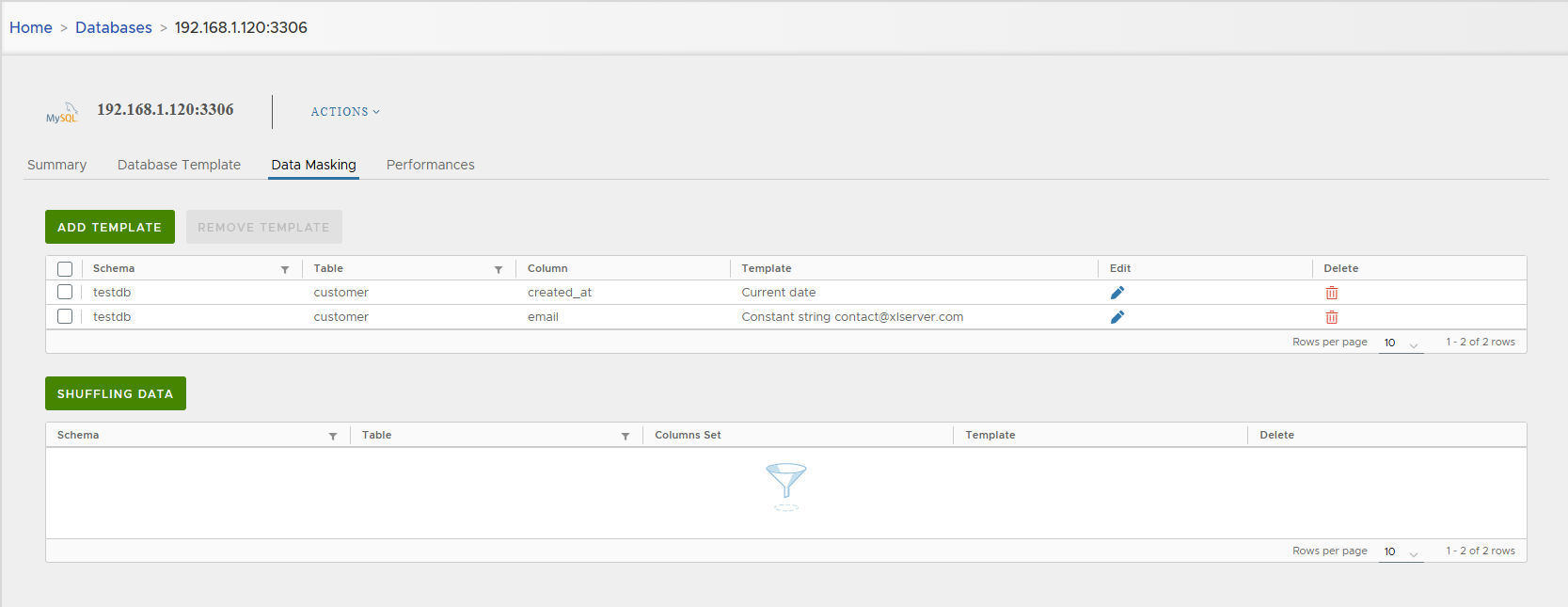

Attached templates

Important

Data masking ensures cloned databases used in development/test environments do not expose production-sensitive data.


4. Performance Tab

Provides full visibility into backup and storage efficiency:

  • Snapshot list (last 7 days)
  • Disk usage statistics
  • Compression ratio
  • Deduplication ratio
  • Backup performance (duration, throughput)
  • Success vs failed snapshots ratio
  • Trends for backup size, DB size, compression ratio, duration

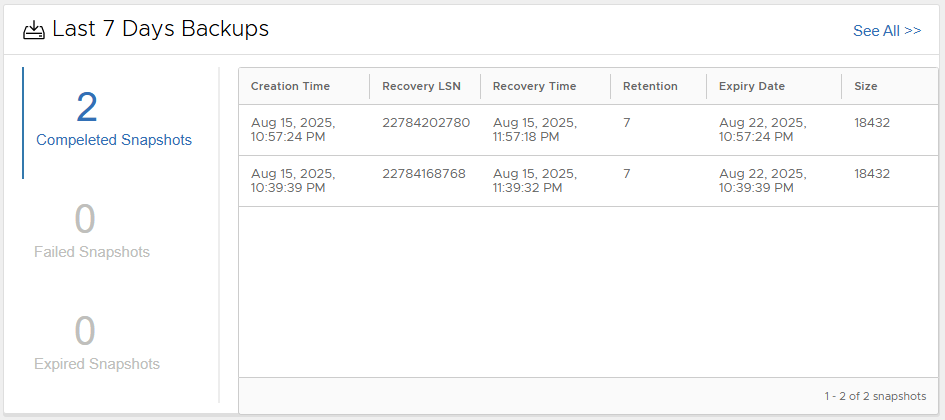

Performance snapshots

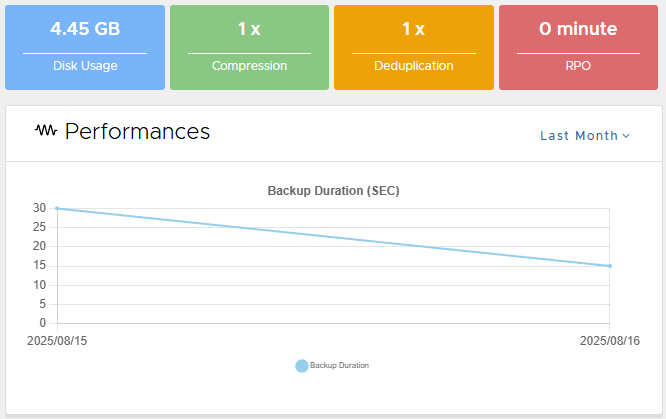

Backup performances

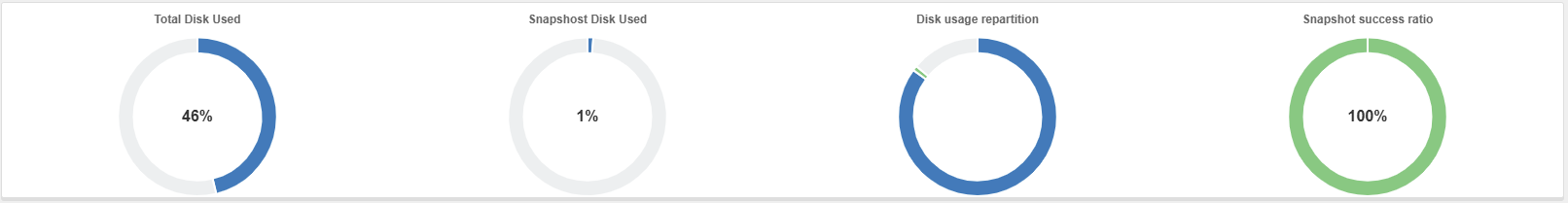

Pie charts

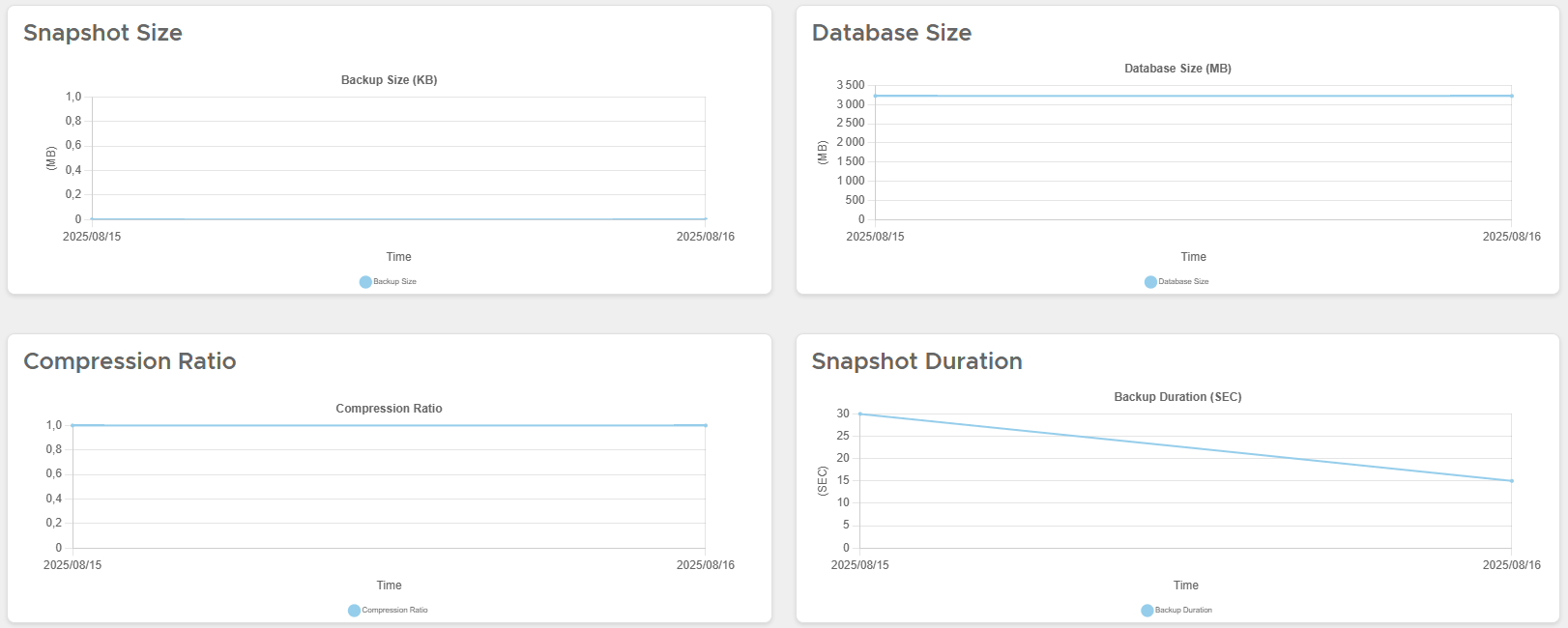

Line charts

Note
Performance monitoring helps proactively identify bottlenecks and optimize backup/clone operations.


🛠️ Actions on MySQL Live Database

From the Actions menu, users can perform:

  • Snapshot
  • Refresh
  • Create Virtual Database
  • Create Physical Database
  • Mount Snapshot
  • Restore
  • Disable / Enable
  • Delete

Each action is detailed below.

Snapshot

Take an on-demand snapshot.
The job progress is visible in the Jobs list.

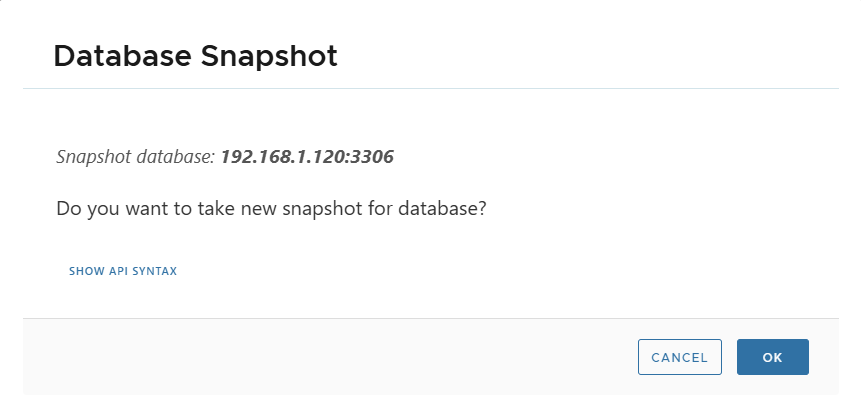

Snapshot confirmation

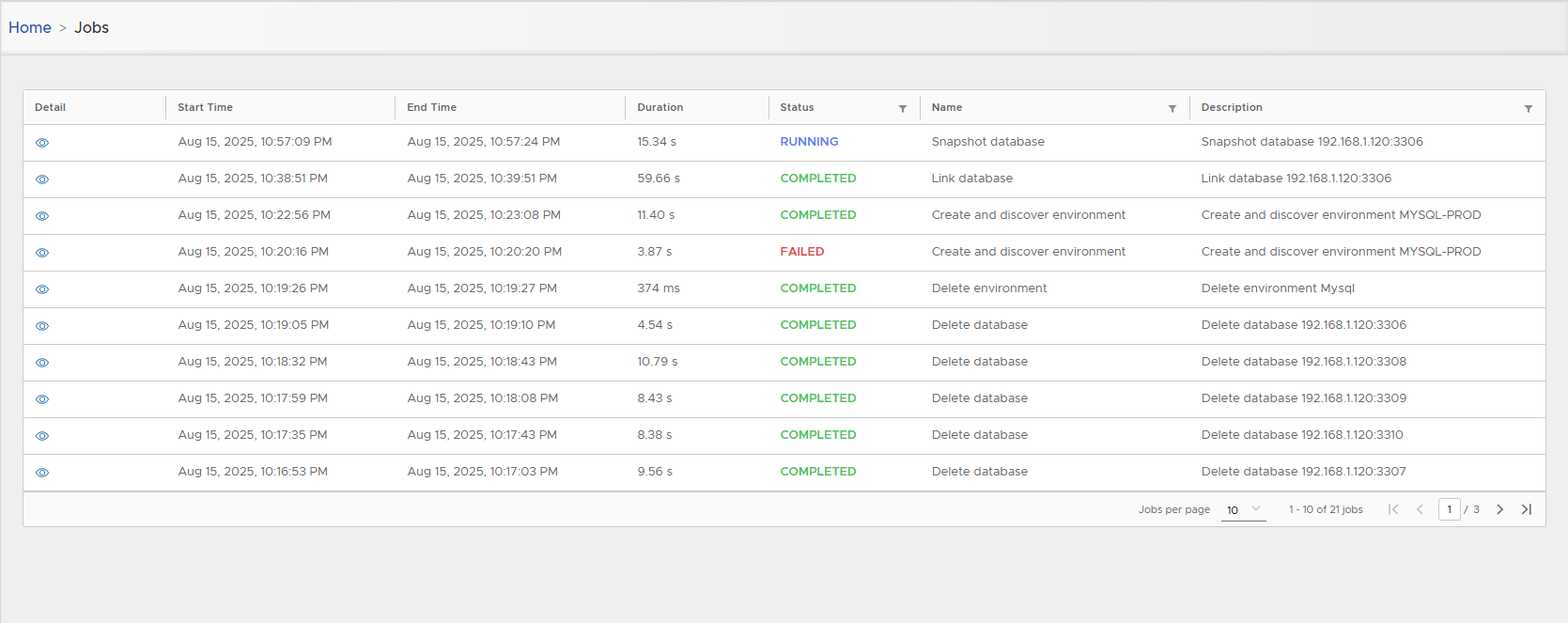

Snapshot progress

Snapshots include:

  • Recovery Time / Checkpoint LSN
  • Snapshot size
  • Retention
  • Schema list

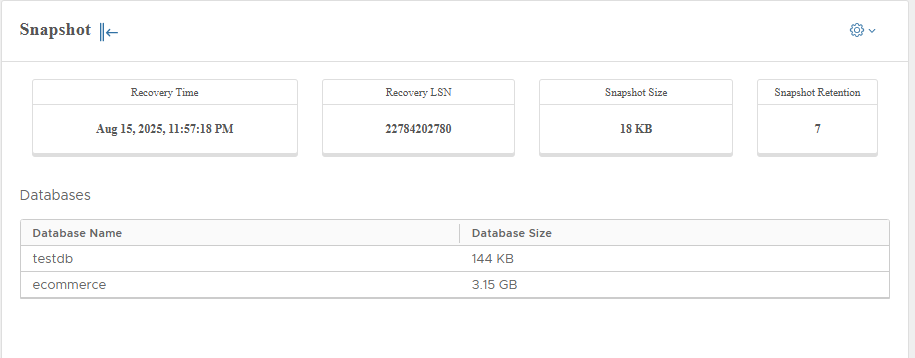

Snapshot detail

Snapshot-scoped actions include:

  • Create Virtual DB
  • Create Physical DB
  • Mount Snapshot
  • Restore
  • Delete

Refresh

Refreshes database parameters (no snapshot is taken).

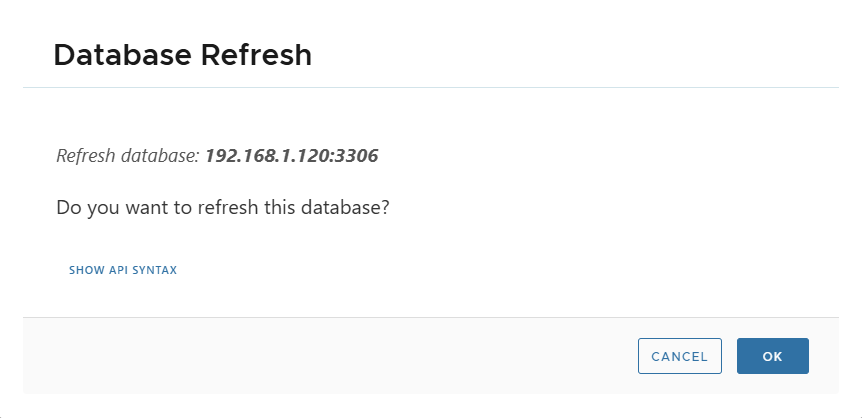

Refresh


Create Virtual Database

Creates an instant virtual clone from latest or specific snapshot.

  • Fast (seconds)
  • Minimal storage consumption
  • Can be reset or shared

Create Physical Database

Creates a full physical clone with its own storage.
Useful for production-like test environments.


Mount Snapshot

Mounts snapshot content on source environment for manual recovery or inspection.

  • Blocks further backups until unmounted
  • Creates a staging clone

Restore

Restores the live DB from a snapshot.
Can be executed from latest snapshot or a chosen one.


Disable / Enable

Temporarily disables/enables database protection and actions.


Delete

Removes the live database from XLServer.

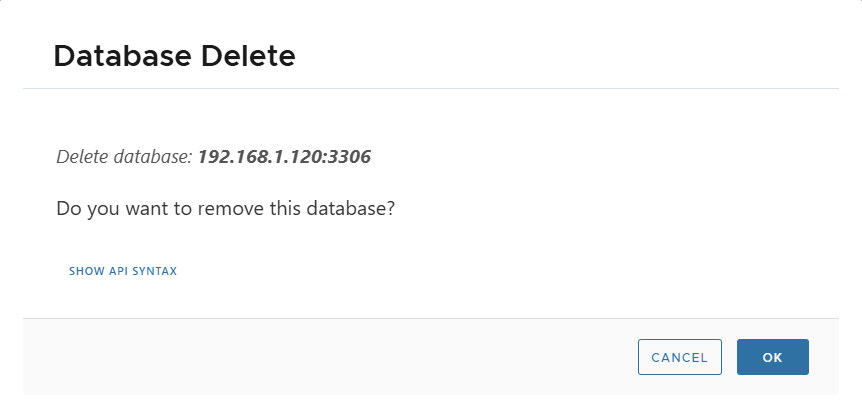

Delete

Note
A live DB Server cannot be deleted if clones still exist. Delete all clones first.


🎯 Backup Strategy Management

Attaching a backup strategy ensures continuous protection.

Assign Backup Strategy

Select a backup strategy and optionally enable binlog purge.

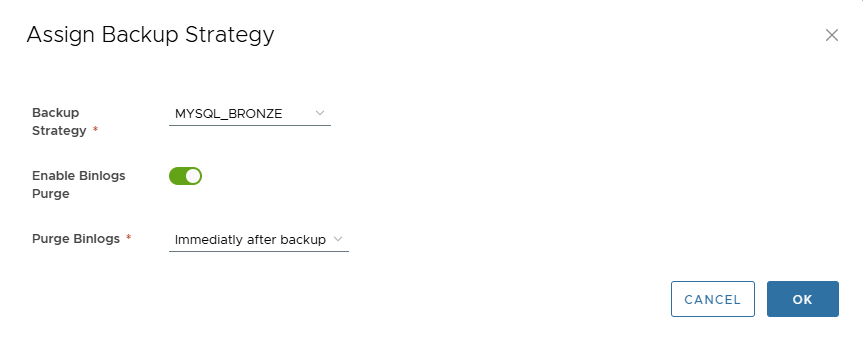

Assign strategy

Modify Backup Strategy

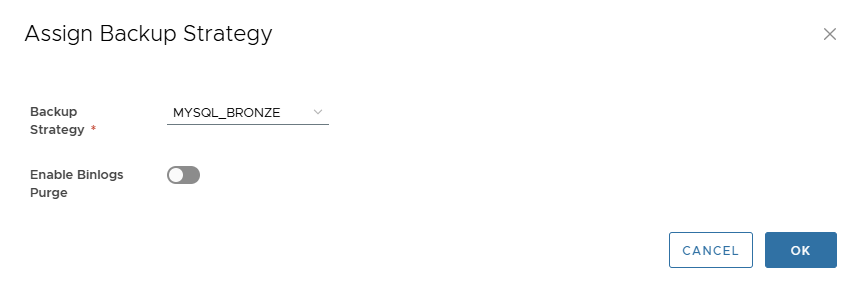

Switch to another strategy or update binlog purge policy.

Modify strategy

Remove Backup Strategy

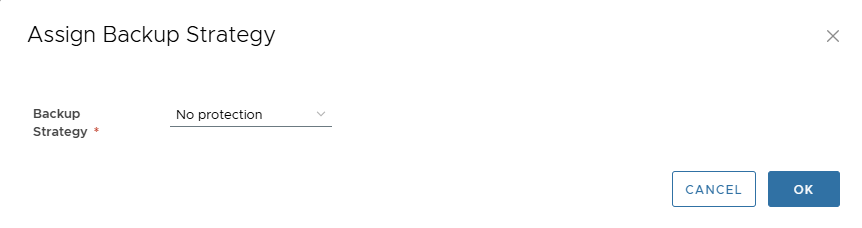

Detach backup strategy by selecting “No protection”.

Remove strategy


🔑 Change Database Credentials

Credentials can be updated anytime:

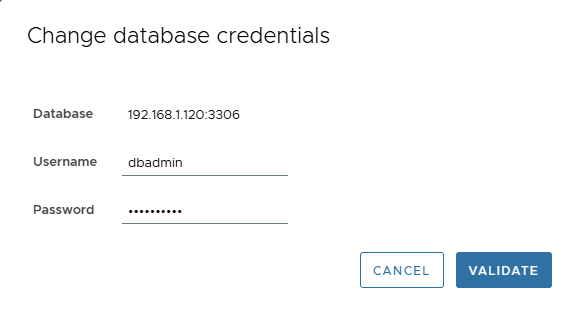

Change credentials


📅 Snapshot Management

Snapshots appear in calendar view.
Click a snapshot to view details and access actions.

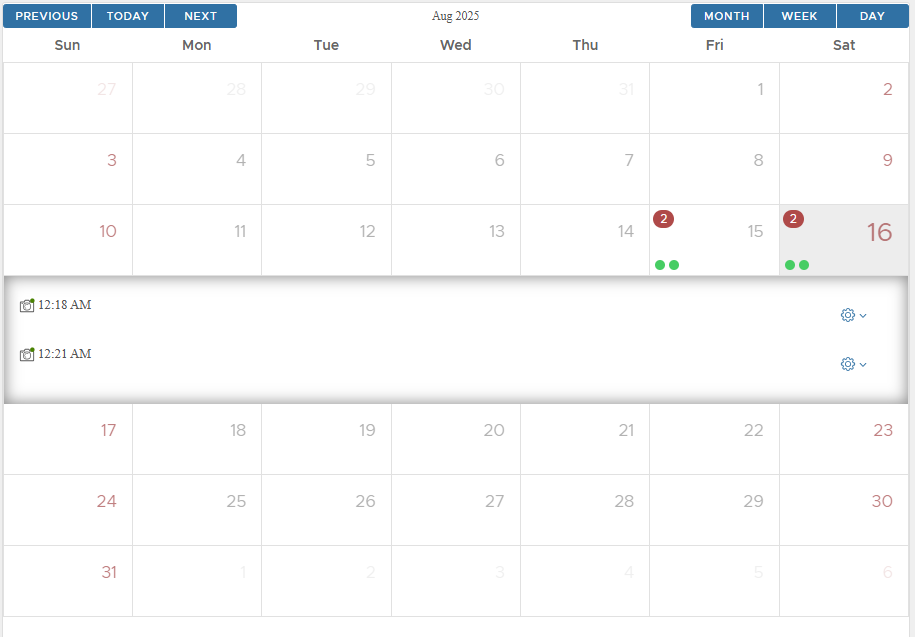

Snapshot calendar


✅ Conclusion

XLServer provides a complete lifecycle management for MySQL database servers:

  • Automatic discovery
  • Golden image creation
  • Continuous incremental backups
  • Secure cloning with masking
  • Performance visibility

This ensures production-grade protection with the agility required for development and testing.

Appendix: Mysql User (Required Privileges)

To allow XLServer to perform backups, snapshots, and recovery operations, you should create a dedicated Mysql database user with the correct privileges. This user will be used when linking and snapshot the database in XLServer.

create-mysql-backup-user.sh

#!/bin/bash

# Script to create MySQL backup user with full privileges
# Usage: ./create-mysql-backup-user.sh <username> <password>

set -e # Exit on any error

# Color codes for output
RED='\033[0;31m'
GREEN='\033[0;32m'
YELLOW='\033[1;33m'
BLUE='\033[0;34m'
NC='\033[0m' # No Color

# Function to print colored output
print_status() {
echo -e "${GREEN}[INFO]${NC} $1"
}

print_warning() {
echo -e "${YELLOW}[WARNING]${NC} $1"
}

print_error() {
echo -e "${RED}[ERROR]${NC} $1"
}

print_header() {
echo -e "${BLUE}[HEADER]${NC} $1"
}

# Function to show usage
show_usage() {
echo "Usage: $0 <username> <password> [options]"
echo ""
echo "Options:"
echo " -h, --help Show this help message"
echo " -r, --root-user MySQL root username (default: root)"
echo " -s, --socket MySQL socket path (default: /tmp/mysql.sock)"
echo " -H, --host MySQL host (default: localhost)"
echo " -P, --port MySQL port (default: 3306)"
echo " --drop-if-exists Drop user if it already exists"
echo " --dry-run Show SQL commands without executing them"
echo ""
echo "Examples:"
echo " $0 backup_user my_secure_password"
echo " $0 xlsbackup rachid --drop-if-exists"
echo " $0 backup_user password123 --host 127.0.0.1 --port 3306"
echo " $0 test_user test_pass --dry-run"
}

# Default values
ROOT_USER="root"
SOCKET="/tmp/mysql.sock"
HOST="localhost"
PORT="3306"
DROP_IF_EXISTS=false
DRY_RUN=false

# Parse command line arguments
while [[ $# -gt 0 ]]; do
case $1 in
-h|--help)
show_usage
exit 0
;;
-r|--root-user)
ROOT_USER="$2"
shift 2
;;
-s|--socket)
SOCKET="$2"
shift 2
;;
-H|--host)
HOST="$2"
shift 2
;;
-P|--port)
PORT="$2"
shift 2
;;
--drop-if-exists)
DROP_IF_EXISTS=true
shift
;;
--dry-run)
DRY_RUN=true
shift
;;
-*)
print_error "Unknown option: $1"
show_usage
exit 1
;;
*)
if [[ -z "${USERNAME:-}" ]]; then
USERNAME="$1"
elif [[ -z "${PASSWORD:-}" ]]; then
PASSWORD="$1"
else
print_error "Too many arguments"
show_usage
exit 1
fi
shift
;;
esac
done

# Check if required parameters are provided
if [[ -z "${USERNAME:-}" ]]; then
print_error "Username is required"
show_usage
exit 1
fi

if [[ -z "${PASSWORD:-}" ]]; then
print_error "Password is required"
show_usage
exit 1
fi

# Validate username (basic validation)
if [[ ! "$USERNAME" =~ ^[a-zA-Z0-9_]+$ ]]; then
print_error "Username must contain only alphanumeric characters and underscores"
exit 1
fi

# Validate password length
if [[ ${#PASSWORD} -lt 6 ]]; then
print_warning "Password is less than 6 characters. Consider using a stronger password."
fi

print_header "MySQL Backup User Creation Script"
echo "Username: $USERNAME"
echo "Host: $HOST"
echo "Port: $PORT"
echo "Drop if exists: $DROP_IF_EXISTS"
echo "Dry run: $DRY_RUN"
echo ""

# Create temporary SQL file
TEMP_SQL=$(mktemp /tmp/mysql_user_XXXXXX.sql)
trap "rm -f $TEMP_SQL" EXIT

# Generate SQL commands
cat > "$TEMP_SQL" << EOF
-- MySQL Backup User Creation Script
-- Generated on $(date)
-- Username: $USERNAME

EOF

# Add drop commands if requested
if [[ "$DROP_IF_EXISTS" == true ]]; then
cat >> "$TEMP_SQL" << EOF
-- Drop existing user if it exists
DROP USER IF EXISTS '$USERNAME'@'%';

EOF
fi

# Add user creation and privilege grants
cat >> "$TEMP_SQL" << EOF
-- Create user for all host connections (%)
CREATE USER '$USERNAME'@'%' IDENTIFIED WITH caching_sha2_password BY '$PASSWORD';

-- Grant all necessary backup privileges
GRANT SELECT ON *.* TO '$USERNAME'@'%';
GRANT INSERT ON *.* TO '$USERNAME'@'%';
GRANT UPDATE ON *.* TO '$USERNAME'@'%';
GRANT DELETE ON *.* TO '$USERNAME'@'%';
GRANT CREATE ON *.* TO '$USERNAME'@'%';
GRANT RELOAD ON *.* TO '$USERNAME'@'%';
GRANT PROCESS ON *.* TO '$USERNAME'@'%';
GRANT LOCK TABLES ON *.* TO '$USERNAME'@'%';
GRANT BACKUP_ADMIN ON *.* TO '$USERNAME'@'%';
GRANT ALTER ON *.* TO '$USERNAME'@'%';
GRANT SHOW VIEW ON *.* TO '$USERNAME'@'%';
GRANT SHUTDOWN ON *.* TO '$USERNAME'@'%';

-- Flush privileges to ensure changes take effect
FLUSH PRIVILEGES;

-- Verify user creation
SELECT 'User created successfully:' as Status;
SELECT user, host FROM mysql.user WHERE user = '$USERNAME';
EOF

# Show SQL commands if dry run
if [[ "$DRY_RUN" == true ]]; then
print_header "SQL Commands (Dry Run Mode):"
cat "$TEMP_SQL"
print_status "Dry run completed. No changes were made to the database."
exit 0
fi

# Function to execute SQL
execute_sql() {
local connection_method="$1"

print_status "Connecting to MySQL using $connection_method..."

if [[ "$connection_method" == "socket" ]]; then
mysql -u "$ROOT_USER" -p --socket="$SOCKET" < "$TEMP_SQL"
else
mysql -u "$ROOT_USER" -p -h "$HOST" -P "$PORT" < "$TEMP_SQL"
fi
}

# Try to connect and execute SQL
print_status "Creating backup user '$USERNAME'..."

# For MySQL, prefer TCP connection to match % host pattern
if execute_sql "tcp"; then
print_status "Successfully connected via TCP"
else
print_warning "TCP connection failed, trying socket..."
if [[ -S "$SOCKET" ]]; then
execute_sql "socket"
else
print_error "Both TCP and socket connections failed"
exit 1
fi
fi

print_status "Backup user '$USERNAME' created successfully!"
print_status "Testing connection..."

# Test the new user connection (use TCP to match % host)
if mysql -u "$USERNAME" -p"$PASSWORD" -h 127.0.0.1 -e "SELECT USER(), CONNECTION_ID();" 2>/dev/null; then
print_status "User connection test successful!"
else
print_warning "User connection test failed. Please verify manually."
fi

# Additional test for backup privileges
print_status "Testing backup privileges..."
if mysql -u "$USERNAME" -p"$PASSWORD" -h 127.0.0.1 -e "SHOW MASTER STATUS; SHOW DATABASES;" 2>/dev/null; then
print_status "Backup privileges test successful!"
else
print_warning "Some backup privileges may not be working. Please verify manually."
fi

print_header "Next Steps:"
echo "1. Test the backup user:"
echo " mysql -u $USERNAME -p -h 127.0.0.1"
echo ""
echo "2. Use in backup scripts:"
echo " mysqldump -u $USERNAME -p -h 127.0.0.1 --all-databases > backup.sql"
echo ""
echo "3. For Xtrabackup:"
echo " xtrabackup --backup --user=$USERNAME --password=PASSWORD --target-dir=/backup/path"
echo ""
echo "4. Always use TCP connections (-h 127.0.0.1) to match the % host pattern"
echo ""
echo "5. Create PERCONA_SCHEMA if needed:"
echo " mysql -u root -p -e \"CREATE DATABASE IF NOT EXISTS PERCONA_SCHEMA;\""
echo " mysql -u root -p -e \"GRANT ALL PRIVILEGES ON PERCONA_SCHEMA.* TO '$USERNAME'@'%';\""

print_header "Security Reminder:"
echo "- This user has powerful privileges including SHUTDOWN and BACKUP_ADMIN"
echo "- Use strong passwords and restrict network access where possible"
echo "- Consider creating application-specific users with limited privileges"

print_status "Script completed successfully!"
